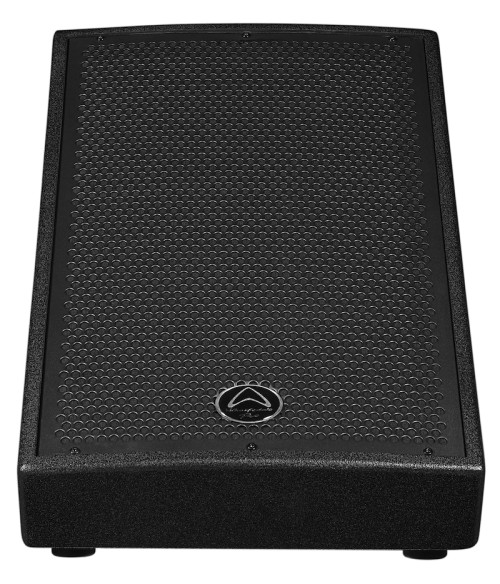

Wharfedale Pro Delta X12M

The Wharfedale Pro Delta X12M is a passive two-way 12-inch floor monitor designed for professional sound reinforcement, fixed installations, and touring applications. It features a custom 12-inch paper woofer with a 3-inch voice coil and a titanium compression driver with a 2-inch voice coil for powerful low-frequency response and clear high-frequency reproduction. Its 15mm plywood enclosure is finished with durable Rhino Rock paint and fitted with a black steel grille. With a maximum SPL of 129dB, 400W continuous power handling, and selectable Bi-Amp or Passive operating modes, the Delta X12M offers flexible configuration for professional audio systems.

• +

  12-Inch Low-Frequency Driver

  Equipped with a 332mm (12-inch) paper woofer featuring a 77.1mm (3-inch) voice coil for strong low-frequency performance.

• +

  Titanium Compression Driver

  Features a high-frequency compression driver with a 50.8mm (2-inch) titanium voice coil, a 35.6mm (1.4-inch) exit, and a titanium diaphragm.

• +

  High Maximum SPL

  Delivers a calculated maximum sound pressure level of 129dB at 1 metre.

• +

  Flexible Operating Modes

  Panel switching allows the speaker to operate in Bi-Amp or Passive mode, supporting system configurations with multiple amplifiers and external crossovers.

• +

  Wide Frequency Coverage

  Provides a frequency response of 60Hz–20kHz at ±3dB and a frequency range of 55Hz–20kHz at -10dB.

• +

  Professional Coverage Pattern

  The high-frequency driver provides nominal horizontal and vertical coverage of 90° × 45°.

• +

  Durable Plywood Enclosure

  Constructed from 15mm plywood with a black paint finish described as premium Rhino Rock paint in the product description.

• +

  Steel Protective Grille

  Features a black 1.5mm steel grille for protection.

• +

  Professional Input Connections

  Equipped with two NL4 connectors compatible with speakON connections.

• +

  Convenient Carrying Handles

  Includes two side-mounted handles for handling and transportation.

• +

  Re-engineered Crossover

  The Delta X series description highlights an improved crossover design and component positioning intended to support long-term performance and reliability.

• Live Sound ReinforcementIts high maximum SPL and substantial power handling make it suitable for professional live sound applications.
• Stage MonitoringThe floor-monitor design makes it suitable for stage monitoring in performance environments.
• Fixed InstallationsThe durable plywood enclosure and flexible amplification modes support professional installed sound systems.
• Touring ApplicationsIts robust enclosure, steel grille, and side handles make it suitable for use in touring audio setups.
• Flexible Professional Audio SystemsSelectable Bi-Amp and Passive modes allow system designers to integrate the monitor into different amplifier and crossover configurations.
