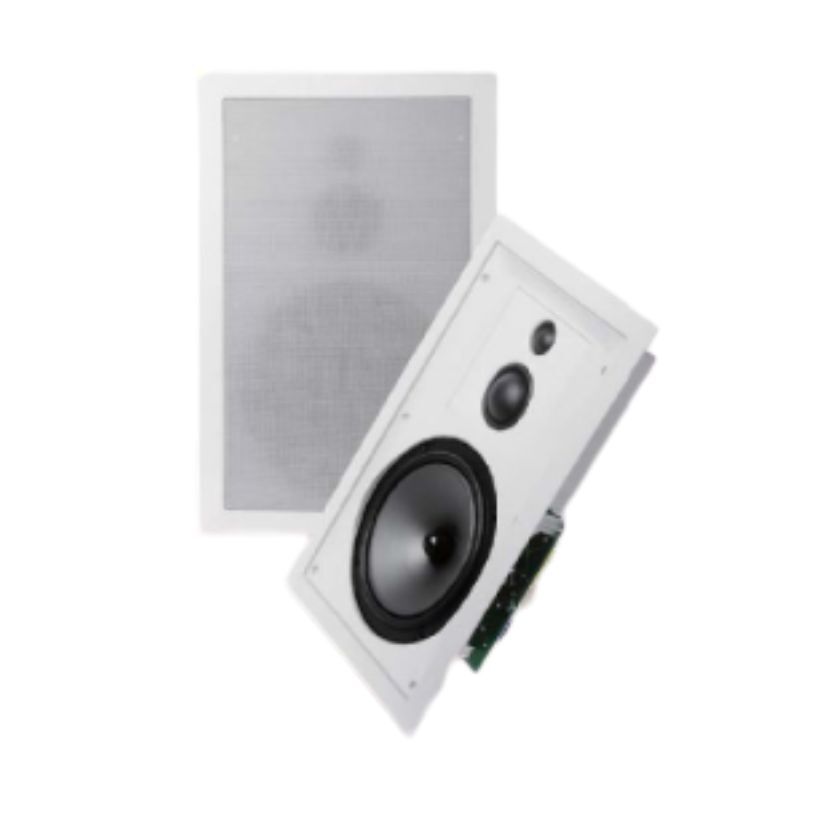

Quad Concourse R8-16 Ceiling Speakers

The Quad Concourse R8-16 is a two-way rectangular in-wall and ceiling loudspeaker designed for professional sound reinforcement and installed audio systems. It features an 8-inch bass driver, a 2-inch soft dome midrange driver, and a 1-inch soft dome tweeter, supported by a passive crossover for balanced audio reproduction. With 100W continuous power handling, 200W programme power, and 400W peak power, it delivers clear sound across a frequency range extending from 35Hz to 20kHz (-10dB). Its 130° × 100° coverage pattern provides broad sound distribution, while the ABS plastic enclosure and integrated mounting system support convenient installation. The 16Ω model is suitable for compatible low-impedance audio systems.

• +

  Three-Driver Configuration

  Combines an 8-inch bass driver, a 2-inch soft dome midrange driver, and a 1-inch soft dome tweeter for low-, mid-, and high-frequency reproduction.

• +

  Wide Frequency Response

  Provides a frequency response of 45Hz–20kHz at ±3dB and a frequency range of 35Hz–20kHz at -10dB.

• +

  High Power Handling

  Supports 100W continuous power, 200W programme power, and 400W peak power.

• +

  Wide Sound Coverage

  Offers nominal horizontal and vertical coverage of 130° × 100° for broad sound distribution.

• +

  High Sensitivity

  Features a sensitivity rating of 90dB at 1W/1m.

• +

  Passive Crossover

  Uses an integrated passive crossover to distribute audio signals across the speaker's driver configuration.

• +

  Soft Dome Midrange Driver

  The 2-inch soft dome midrange driver handles mid-frequency reproduction.

• +

  Soft Dome Tweeter

  The 1-inch soft dome tweeter reproduces high-frequency content.

• +

  Integrated Mounting System

  Built-in mounting hardware supports straightforward installation in compatible walls and ceilings.

• +

  ABS Plastic Enclosure

  Constructed from ABS plastic for a practical and lightweight installed-speaker enclosure.

• +

  Spring-Loaded Terminals

  Uses spring-loaded speaker terminals for connecting compatible speaker cables.

• +

  Rectangular Design

  The rectangular enclosure is designed for in-wall and ceiling installation applications.

• Ceiling Audio InstallationThe integrated mounting system and rectangular design make the speaker suitable for compatible ceiling installations.
• In-Wall Audio SystemsIts in-wall design supports discreet installation in compatible indoor audio environments.
• Commercial AudioThe combination of 100W continuous power handling and broad coverage makes it suitable for compatible commercial sound systems.
• Background MusicIts broad frequency response supports music reproduction in installed audio environments.
• Speech ReinforcementThe midrange driver and wide coverage pattern can support speech playback in appropriately designed sound systems.
• Wide-Area Sound DistributionThe 130° × 100° nominal coverage helps distribute sound over a broad listening area.
• Professional Installed AudioThe passive design, integrated mounting hardware, and spring-loaded terminals support integration into compatible installed audio systems.
